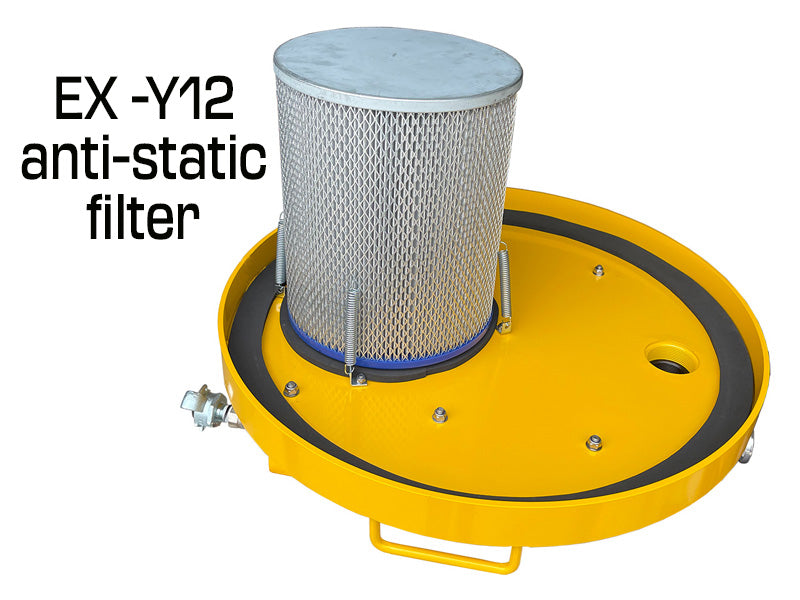

Filter - anti-static explosion proof

The Spillrite EX filter is designed to dissipate any static charge and has been custom designed for Spillrite products.

TEAR STRENGTH       -     WARP  840 N/5cm

$1-         WEFT  620 N/5cm

FLEX RESISTANCE                       50,000+ cycles

BURST STRENGTH                       27.3 kg/cm²

AIR PERMEABILITY                      180 l/m².s @ 200Pa

[23 CFM]

Collection Efficiency %       0.3 – 0.5 micron          -        48%

                                             0.5 – 1.0 micron          -        52.4%

                                             1.0 – 2.0 micron          -        86.0%

                                             2.0 – 5.0 micron          -        99.0%

                                             5.0 micron & over       -        ≤99.5%

PRESSURE DROP                          5.3 mm Aq

MAX CONT. OP.TEMP                   120°C

Relative moisture regain              0.4 %

Shrinkage – MAX                  md    +0.8 %

                                             Cd     -0.1 %

Surface treatment                        metalized surface for antistatic

Resistivity                                     less than 1 x 10
