Spillrite

Concrete Dust Vacuum RDTV260 Combo with Twin Cyclone Reverse Filter Cleaning

Concrete Dust Vacuum RDTV260 Combo with Twin Cyclone Reverse Filter Cleaning

Regular price $6,890.00 AUD
Regular price Sale price $6,890.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

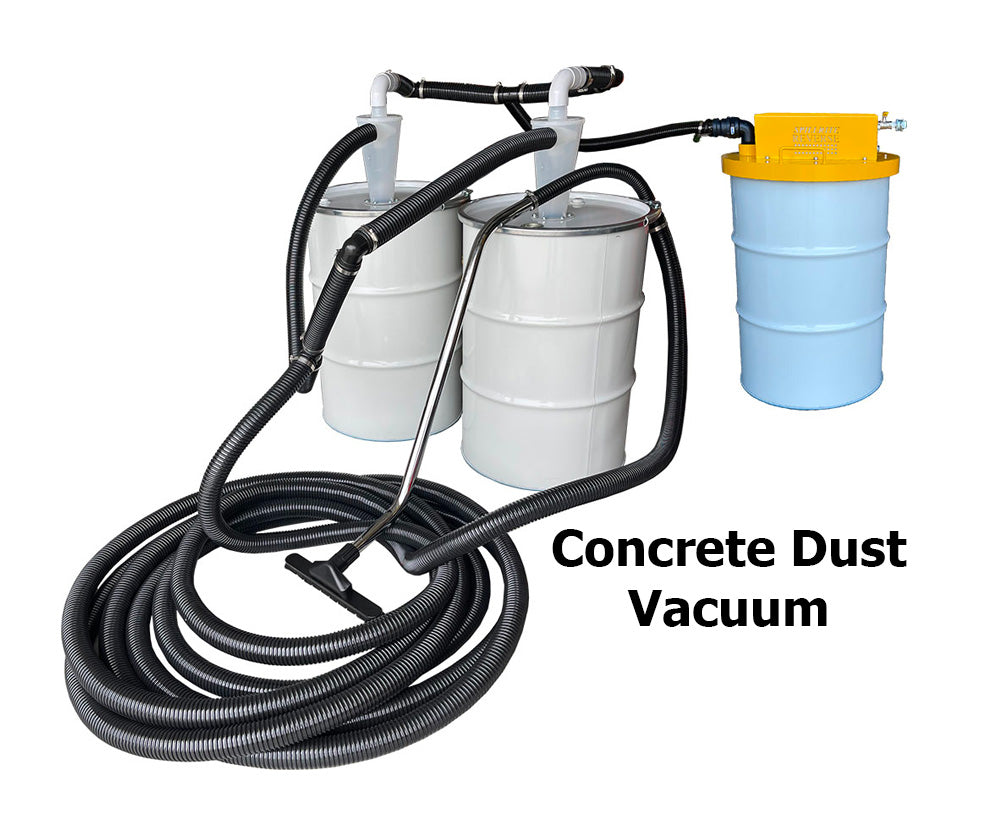

Concrete Dust Vacuum RDTV260 Combo with Twin Cyclone Reverse Filter Cleaning .

The vacuum system is powered by a 260 cfm Drum Top Vacuum.

Drum Top Vacuum 260 cfm

DTV260 dust vacuum technical specifications

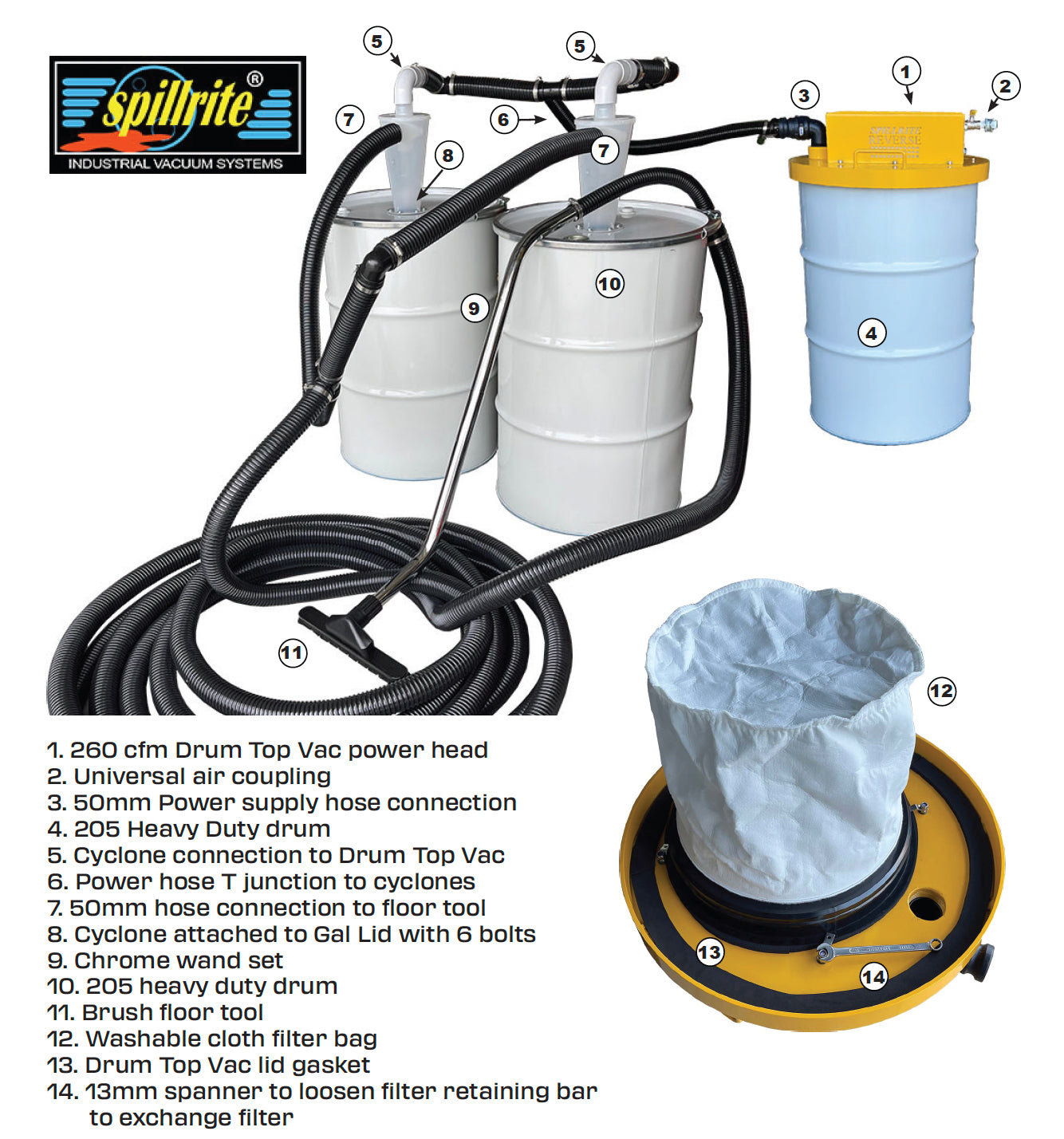

260 cfm concrete dust twin cyclone vacuum

  1. 260 cfm Drum Top Vac
  2. . Universal air coupling
  3. 50mm power supply hose connection
  4. 205 Heavy duty drum
  5. Cyclone connection to Drum Top Vac
  6. Power hose T junction to cyclones
  7. 50mm hose connection to floor tool
  8. Cyclone attached to gal lid with 6 bolts
  9. Chrome wand set
  10. 205 heavy duty drum
  11. Brush floor tool
  12. Washable cloth filter bag
  13. Drum Top Vac lid gasket
  14. 13mm spanner to lossen filter retaining bar to exchange filter

The Spillrite dust vacuum is an air operated industrial vacuum that requires compressed air to operate. The pneumatic power head is built on an alloy lid that fits all 205/44/55 steel drums. This system comes with twin air valves, one for the vacuum and one for the reverse pulse filter cleaning.

The filter bag is washable. The unique design of the reverse venturi's means that the drum cannot over pressurize when in reverse mode. Pressure is released though the throat of the venturi's and the exhaust ports.

Pneumatic drum vacuums are powered by compressed air.

  • They do not use electricity
  • There are no moving parts to wear out
  • They cannot cause friction or create a spark
  • Can be used in both wet and dry applications
  • Designed and manufactured in Australia
  • 4 times the power of electric vacuums
  • Huge 5 metre water lift
  • 5 year warranty

    We build to order and ship within 3-5 business days

    Reverse Drum Top Vac dust vacuum inclusions
