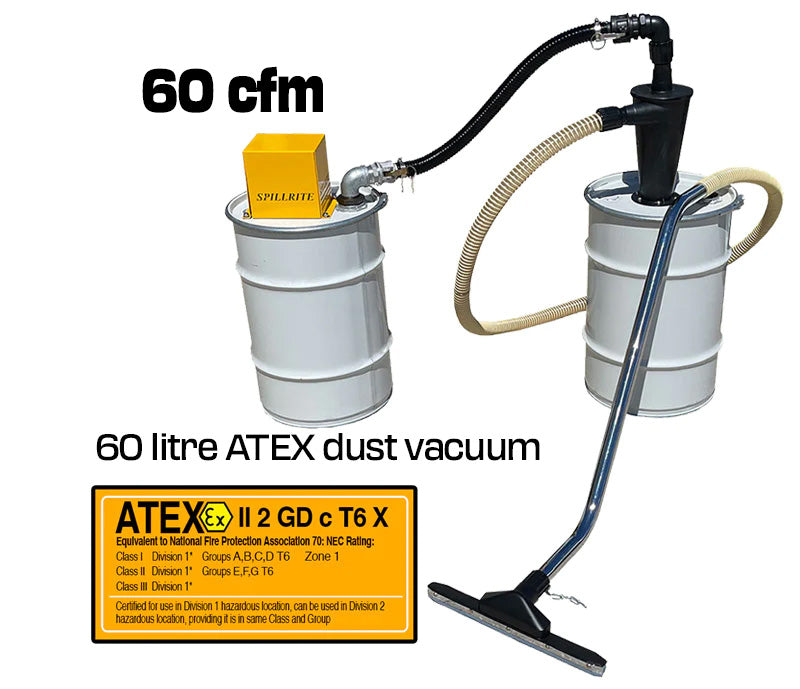

60 litre dust vacuum explosion proof 60 cfm - ATEX certified

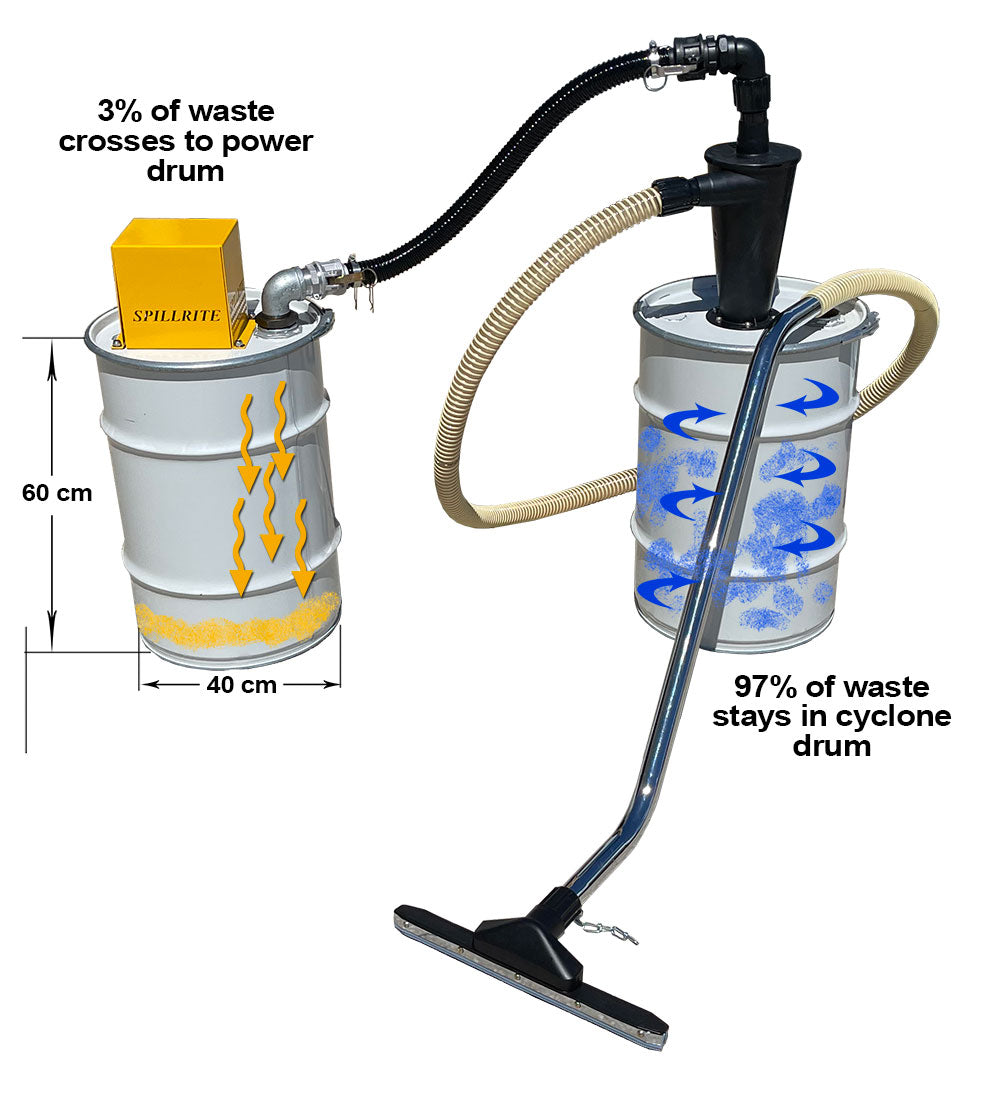

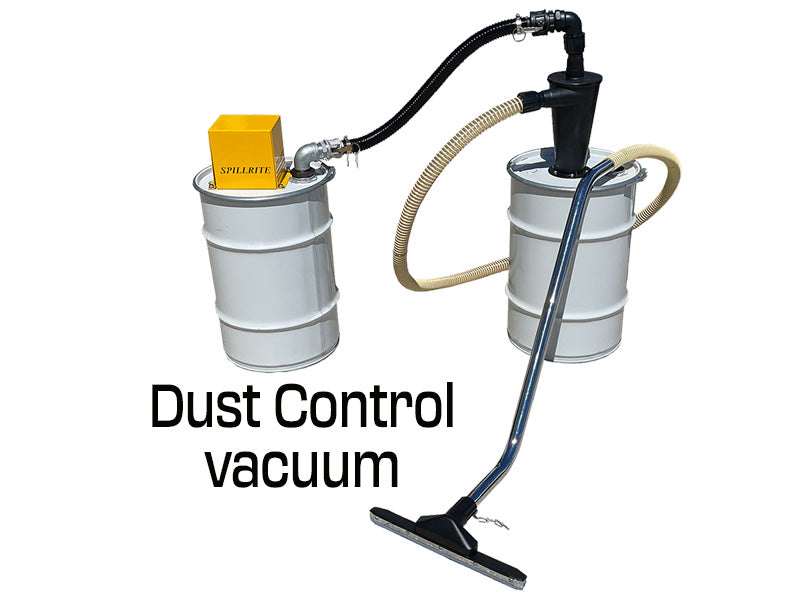

The DLDV 60/60/EX  is a pneumatic dust vacuum system with cyclonic separator explosion proof designed for combustible dust.

Spillrite's ATEX vacuums are safe to use in cleaning up combustible dust and flammable fluids. Our vacuums are certified under the ATEX directive that the European Union uses as a standard ans also the new UKCA which replace ATEX in the United Kingdom from January 2022. These standards are for equipment approved for use in explosive atmospheres.

Spillrite vacuums are ATEX and UKCA certified for use in National Fire Protection Association (NFPA) 70: NEC rating Class I, Division 1 (Zone 1 only), Groups A,B,C,D T6 and Class II, Division 1, Groups E, F, G T6.

• 60 cfm - 5-10 metres suction hose
• 90 cfm - 10-15 metres suction hose
• 120 cfm - 20-25 metres suction hose

he Spillrite DLDV 60/60/EX is a pneumatic drum lid vacuum with reverse filter clean and combined with a cyclone to enable fast cleanup and extended run times without the need to constantly clean the filter. This unit with its cyclone and pneumatic reverse clean system has been extensively tested in power stations where they need to clean up fly ash and coal dust which is just nasty and extremely dangerous due to the danger of dust explosion. (Eraring Power station and Millmerran Power station)

The DLDV 60/60/EX performs extremely well in these circumstances. When it comes to abrasive blast media there is no explosion risk but there is the need for a vacuum unit that can cope with large amounts of dust and still perform.

The unit in operation at Eraring Power Station vacuuming abrasive and explosive coal dust.

The unit with a drum instead of the large waste tank in operation at Millmerran Power station vacuuming abrasive fly ash.

1. DLDV 60/60/EX is extremely efficient and the reverse filter cleaning sets it apart from most pneumatic vacuum systems in the market. The unique design that Spillrite incorporates allows reverse flow of compressed air to blast through the filter from the inside out clearing built up dust and blast media from the filter casing allowing the vacuum to breath easy and continue with the awesome power of the triple reverse thruster venturi's.

Pneumatic Drum Vacuums are very SAFE.

1. Pneumatic drum vacuums are powered by compressed air, they do not use electricity
2. There are no moving parts to wear out, cause friction or create a spark
3. Can be used in both wet and dry applications
4. Designed and manufactured in Australia
5. 4 times the power of electric vacuums
6. Huge 5 metre water lift
7. 5 year warranty
